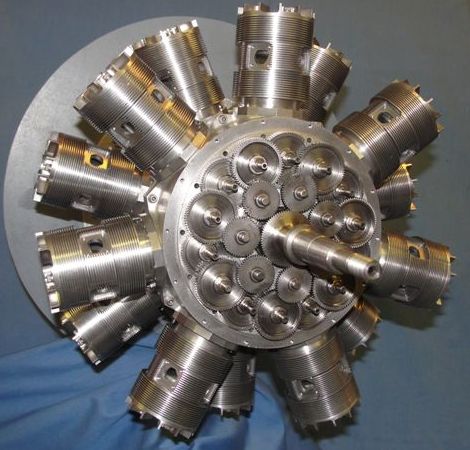

14 Cylinder - Sleeve Valve - Specifications

14.0 inch diameter

16.0 inch length ( without carburetor )

1.375 inch bore x 1.625 inch stroke

33.78 cubic inch displacement ( 550 CC )

Compression ratio  8.9 :  1

Approx. Weight :  45 lb. without carburetor, oil tank or club

Fuel - 110 Low Lead

                                                            Oil  -  50 wt  -  Ashless Dispersant



Full Pressure Oil Pump

Fully Pressurized Master Rod Bearings

Fully Lubricated Gears and Ball sockets

Dry Sump with Scavenge Pump

Direct drive

4 Cycle  -  Air-cooled
Naturally aspirated - No supercharger
Rotation:  Counter-Clockwise viewed from rear

Spark ignition - 1 Spark Plug per Cylinder :

     CDI Electronic Ignition and Distributor

Machine Tool Requirements  :

      1.  Lathe with 12" Diameter swing with 3 & 4 jaw chucks

      2.  Bridgeport Milling Machine or equivalent

      3.  8" Dividing Head & Rotary Table
